Installing Evidence Recorder on a Leica Nova MS50
Posted by Jacob Wall on 16 March 2016 02:31 PM

Installing Evidence Recorder on a Leica Nova MS50 MultiStation can be achieved by following the steps below:

  1. Download the desired version of the Devices Installation installer from the Evidence Recorder Downloads page.
  2. Install Windows Mobile Device Center if not already installed on your PC. Download the necessary files from Microsoft if needed. The software is required for the next step to succeed.

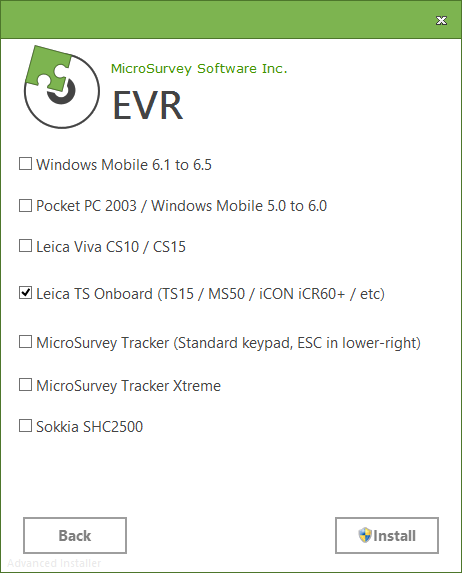

  3. Run the EXE file and when prompted select Leica TS Onboard from the device list:

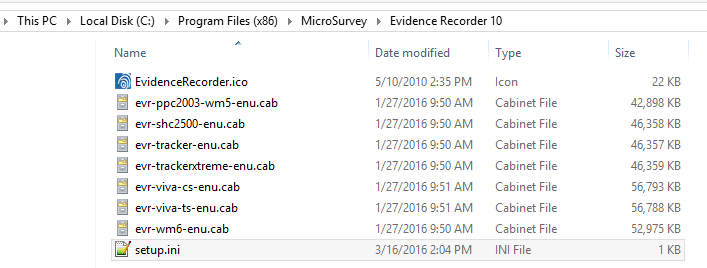

  4. The installer will extract a collection of files to a directory on your PC: C:\Program Files (x86)\MicroSurvey\Evidence Recorder 10 Navigate to this folder and locate the setup.ini file in the folder:

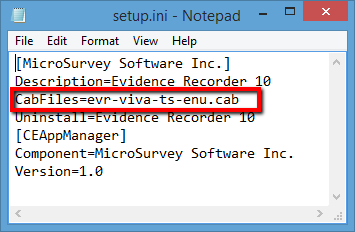

  5. Open the file in Notepad and note the name of the CabFiles= line:

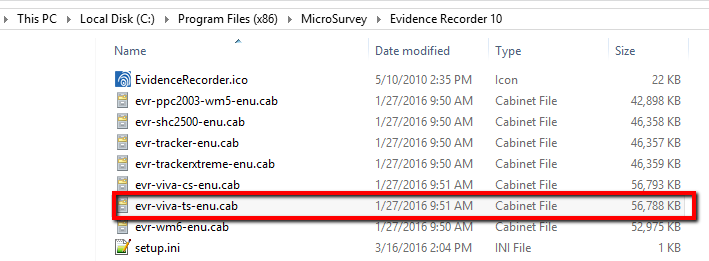

  6. Copy the CAB file noted in the setup.ini file to a USB Flash Drive or SD Card:
  7. Power on the MS50, and Exit the Viva Software if it launches.

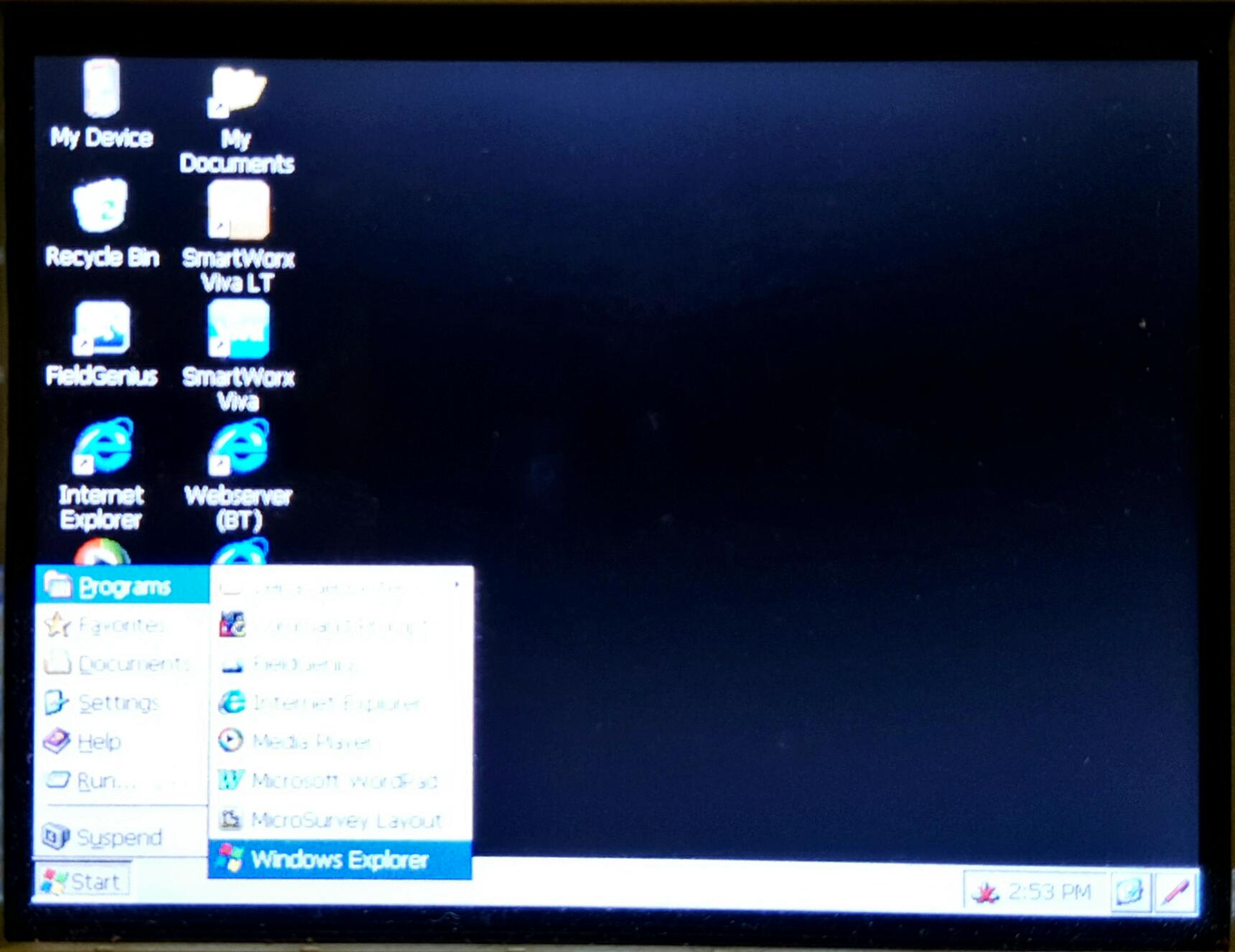

  8. Open Start Menu > Programs > Windows Explorer:

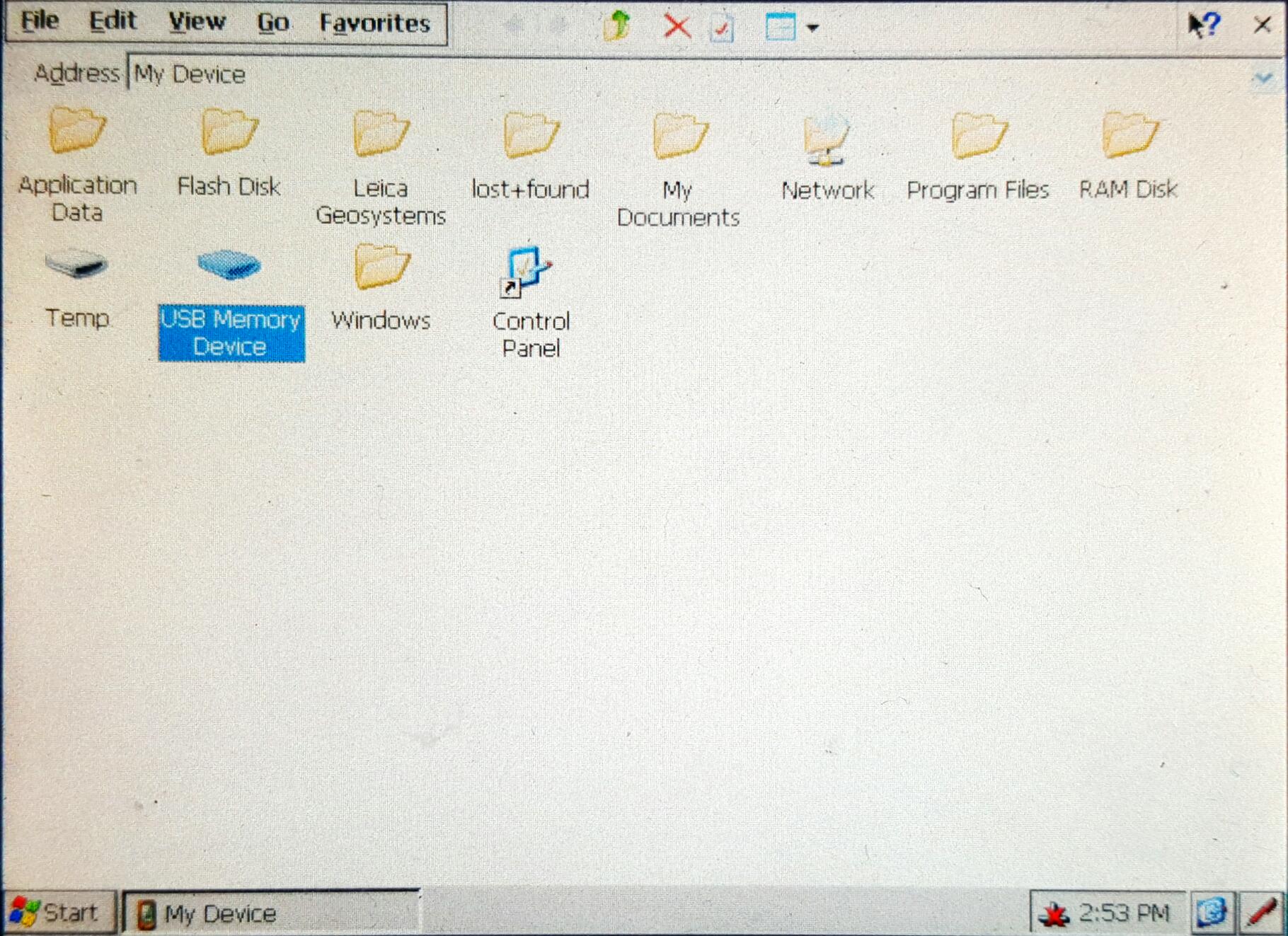

  9. Pick your USB Flash Drive or SD Card from the Explorer:

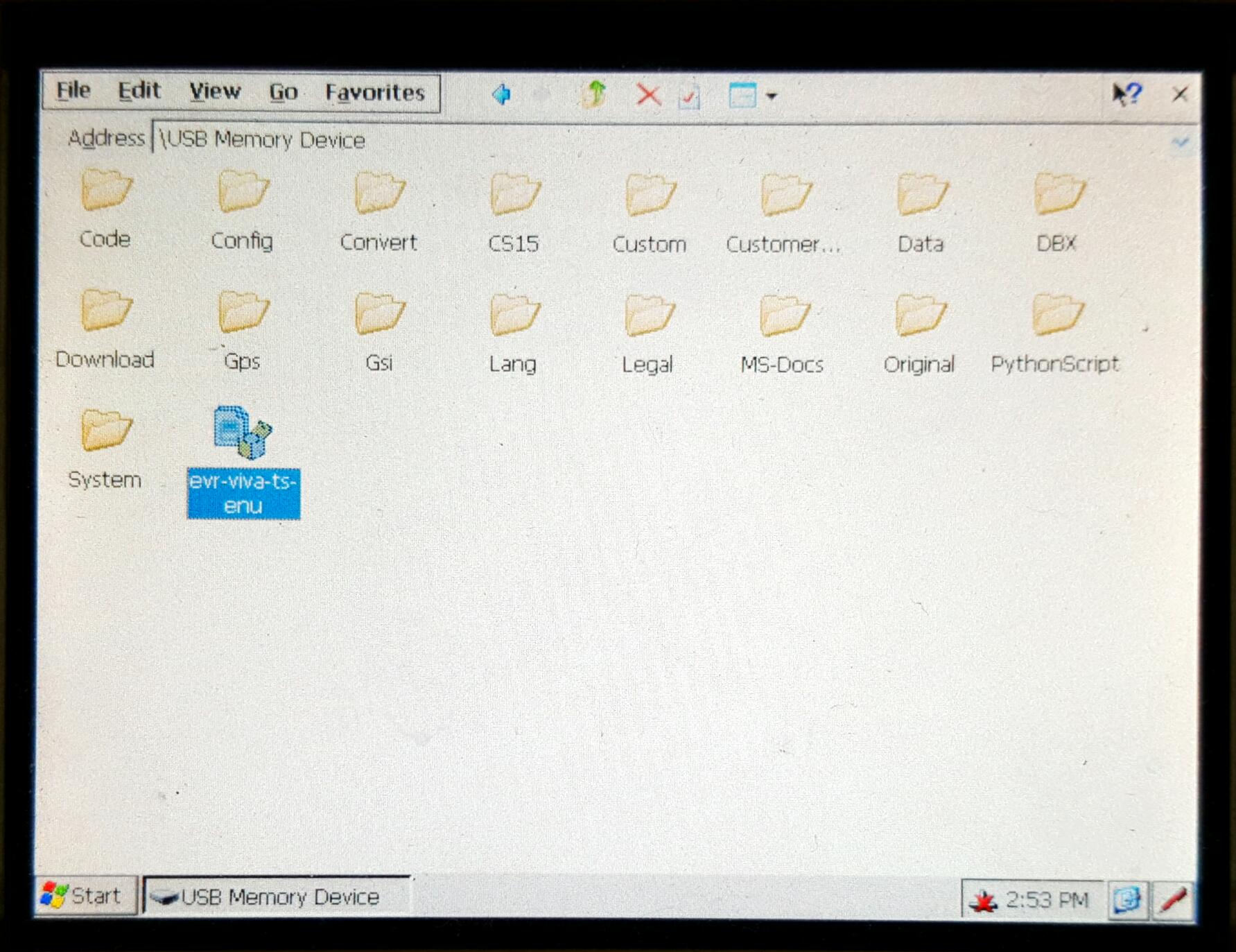

  10. Locate the CAB file on the memory device and double-tap on it:

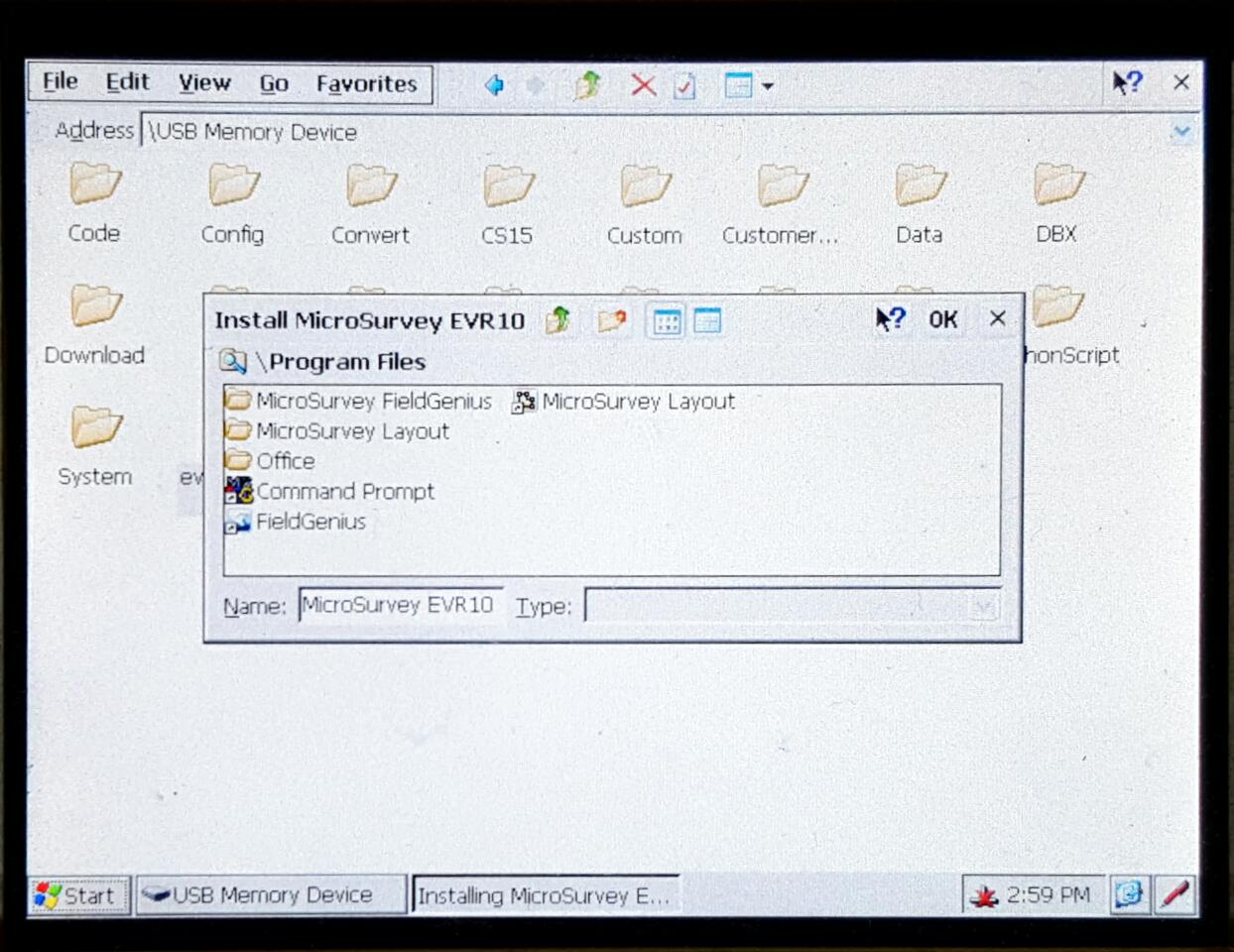

  11. Confirm the name for the shortcut:

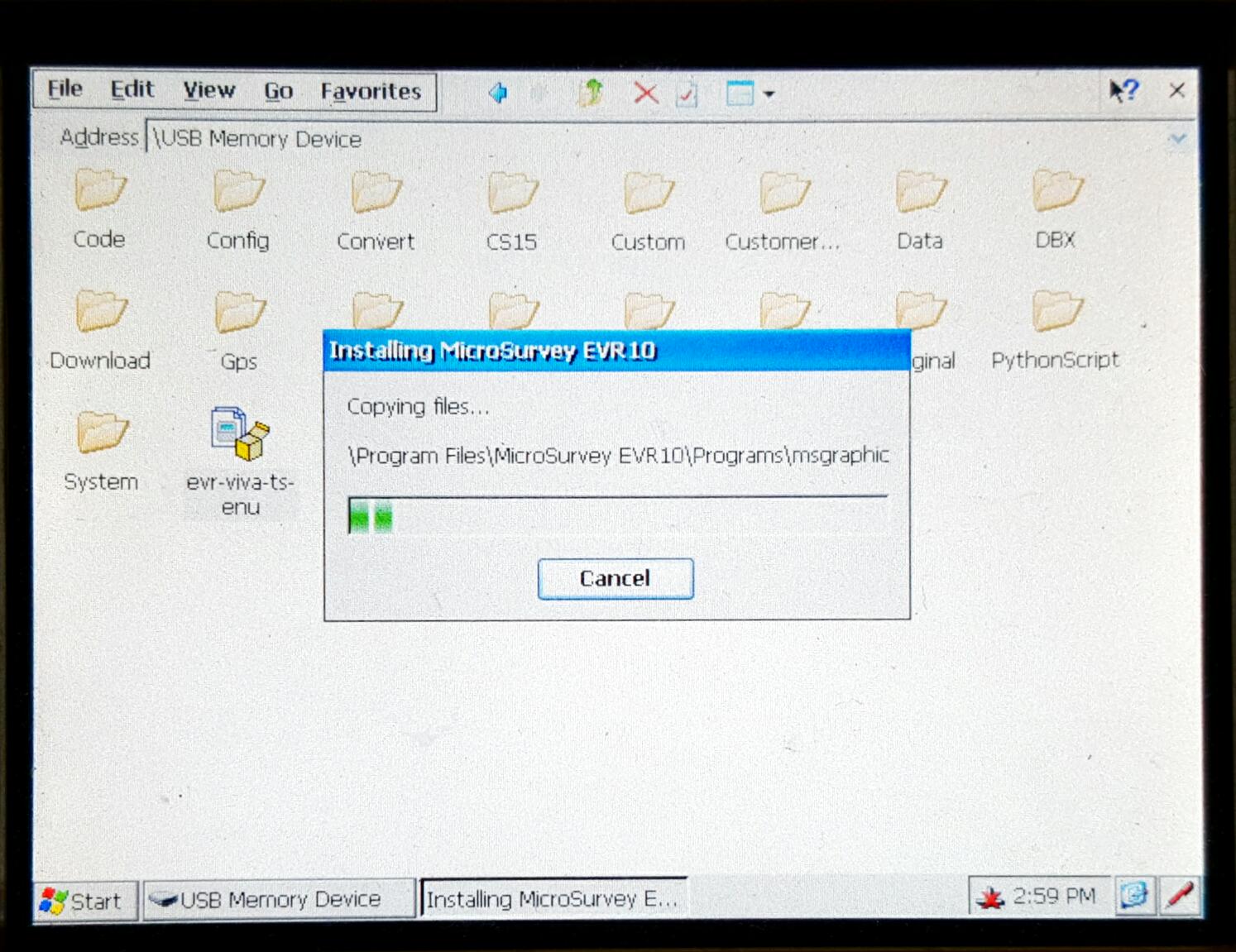

  12. Wait for the installation to complete:
  13. Launch Evidence Recorder using the shortcut placed on the desktop.
